Motor Commissioning Planner

Commissioning electrical motors starts with a clear test plan. Generate your checklist, flag missing evidence, and screen recorded supply voltages.

For qualified commissioning teams · Planning aid, not startup approval · Reviewed 20 September 2026

Build your commissioning plan

Required fields below. Defaults are an example motor.

Optional: check recorded line voltages

Enter all three sinusoidal line-to-line readings in V, or leave all blank. Each must be above 0 and below 1,000 V. Use existing measurements taken under your approved electrical work procedure.

Changing motor type, supply or rated voltage clears these readings to prevent mixing test conditions.

Entry limits: above 0 to 36,000 V; above 0 to 100,000 kW. These are tool limits, not test ratings. Power is recorded for handover; it does not set acceptance thresholds.

Plan preview

Enter or confirm the example data, then generate a plan. No tests have been assessed.

A practical record for your next commissioning review

  • Static, run-test and protection checklist
  • Voltage unbalance screening when readings are supplied
  • Missing limits and next actions, ready to save
No specifications yet? Start with the handover record

What the commissioning result can tell you

A nameplate selects a plan

Test conditions and approved limits still need the applicable motor and drive documentation. This planner keeps unknowns visible. Evidence and scope

One measurement is not acceptance

Insulation resistance alone cannot establish complete winding health. Keep complementary measurements and their temperature context. Evidence and scope

STO is not electrical isolation

Separate torque prevention from isolation and the machine’s stopping and holding requirements. Evidence and scope

Commissioning phase gates

Planning sequence proposed by this guide. A generated checklist does not mark any gate complete. The approved machine procedure controls the actual sequence and hold points.

  1. 1. Plan and isolate

    Identify equipment, hazards, manuals and the approved test procedure.

  2. 2. Static evidence

    Record electrical and mechanical checks against approved limits.

  3. 3. Controlled run

    Only after pre-run checks: record the permitted unloaded and loaded tests.

  4. 4. Review and release

    Validate protection functions, resolve exceptions and obtain sign-off.

Method, evidence and limits

Reviewed 20 September 2026. Public source summaries establish scope; the applicable OEM manual and project acceptance procedure supply the actual test limits. No failure-rate statistics or generic insulation pass values are assumed.

Which conclusions the evidence supports
CheckEvidenceUse and boundary
Supply voltageDOE tip sheet #7Maximum absolute deviation from the three-voltage average, divided by that average. The 1% guide screens sinusoidal supply magnitudes only.
Insulation and resistanceMegger test guidanceRecord winding temperature, method and reference conditions. Insulation resistance does not test the entire insulation system. Acceptance is pending the OEM criterion.
Converter compatibilityABB motor manual §6Check the specified motor, cable and filter combination. A drive-fed motor needs its applicable setup procedure.
VibrationIEC 60034-14:2018 scopeSpecified uncoupled factory tests have defined conditions. Do not apply a universal 1.5 mm/s field limit across mounting, speed and machine classes.
STO and electrical workABB drive safety/STO sectionsTorque prevention is separate from electrical isolation. Validate installed functions using the drive and machine procedure.
Insulation standard statusIEEE 43-2013 catalogInactive-Reserved since 21 March 2024. Confirm the edition specified for the project; no claim of current IEEE certification is made.

How voltage screening is calculated

Average = (VAB + VBC + VCA) / 3

Unbalance (%) = 100 × max(|VAB − average|, |VBC − average|, |VCA − average|) / average

Illustrative readings of 400, 402 and 398 V give a 400 V average and 0.5% unbalance. Results above 1% trigger investigation; values at or below 1% remain a limited screening result. Classification uses the full precision value, while display is rounded. Method source

The calculator accepts recorded positive decimal values, not live measurements. It does not model phase-angle errors, distortion, measurement uncertainty or permissible absolute voltage. Near the boundary, review instrument accuracy and repeatability with the responsible engineer.

Choose the right test path

Planning choices; equipment-specific instructions take precedence
ConfigurationPlan emphasisDo not infer
Mains-fed induction, below 1,000 VStatic evidence, sinusoidal supply screening, permitted baseline run and protection review.A low voltage-unbalance result does not establish insulation or machine safety.
VFD-fed inductionMotor parameters, compatible cable/filter arrangement, drive setup and thermal protection.Ordinary PWM voltage readings are not inputs to this checker.
PMSM / servoCompatible drive and feedback setup; identify brake, commutation and motion hazards.No universal percentage of full-load current is used as a no-load target.
1,000 V and above; special-service equipmentOEM or specialist review, using the required test equipment and acceptance procedure.No high-voltage test setting or hazardous-area acceptance is generated.

Basis: motor installation and converter scope, drive safety and startup scope.

Risks, cost and alternatives

Qualitative planning tradeoffs, not measured cost or reliability estimates
Risk or choiceImpactPractical response
Generic insulation test applied to an assembled drivePotential electronics damage and invalid evidence.Confirm which components must be disconnected and the approved test method before testing.
Uncoupling an integrated assemblyExtra access, alignment and downtime; may be outside the OEM procedure.Use an OEM-approved assembled test if separation is not permitted; document the limitation.
Buying instruments before defining limitsUnnecessary cost or unsuitable range/bandwidth.Obtain the method first; compare an appropriately equipped specialist with purchase or rental.
Recording only a “pass”Future faults are harder to investigate without comparable measurements.Retain readings, settings, conditions, instrument identity and the reviewer decision.
Missing limit or contradictory guidanceA generic number can create false confidence.Keep the check pending and resolve the applicable manual/contract revision with the responsible engineer.

These are editorial planning recommendations informed by the installation manual and measurement limitations. No financial savings or downtime reduction is promised.

Minimum handover record

Use this template even when nameplate details are unavailable. The saved tool output is a starting record; fill in evidence and approval locally.

Generate your downloadable commissioning record
Unknown values stay pending until confirmed
Record groupMinimum fieldsInitial status
Identity and scopeAsset ID, motor/drive models, nameplate photo, serial numbers, service conditions, manual revisions.Nameplate values are user-entered; identity and revisions pending.
Static testsApproved limits/units, test voltage and duration, winding temperature, connection method, instrument/calibration ID and results.Not assessed by this tool.
Run testsSpeed, load, mounting, sensor position/bandwidth, currents, voltages, vibration and OEM comparison.Only optional supply-magnitude unbalance is screened.
Protection and releaseStop/restart checks, installed safety functions, thermal input, exceptions, responsible reviewer and date.Approval pending; no automatic release.

Three worked planning scenarios

Illustrative examples, not customer tests or acceptance certificates
AssumptionProcess and resultNext decision
400 V, 5.5 kW mains induction; readings 400 / 402 / 398 VAverage 400 V; maximum deviation 2 V; unbalance 0.500%. Within the screening guide.Complete the other tests and review absolute supply voltage; no startup approval is implied.
400 V, 5.5 kW mains induction; readings 400 / 410 / 390 VAverage 400 V; maximum deviation 10 V; unbalance 2.500%. Above the guide.Investigate and remeasure the supply; review the applicable OEM loading/derating decision.
48 V, 0.75 kW PMSM module with an integrated driveDrive-specific plan; voltage screening disabled. Static and dynamic acceptance values remain pending.Request the approved assembly test and feedback/brake setup instructions from the supplier.

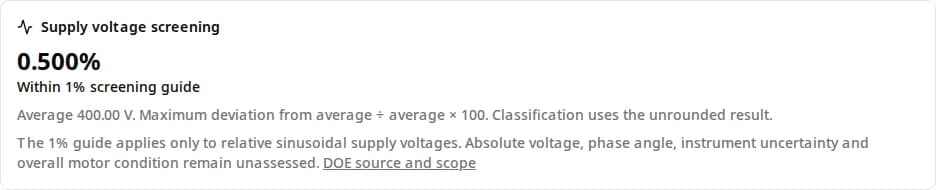

Motor commissioning planner result showing 0.500 percent voltage unbalance from recorded 400, 402 and 398 V inputs
Actual planner output captured on 20 September 2026 with the illustrative 400 / 402 / 398 V inputs. This demonstrates the calculation in the software; it is not a physical motor test or customer acceptance record.

Sources and review date

Public sources checked 20 September 2026. Publication dates and revisions below describe the referenced documents, not a claim that they are the current contractual edition for every installation.

By AMRDriveUnit. Published ; updated . Next editorial review by , or earlier if a cited method changes. This is a source-based planning guide; the examples are not physical motor test results.

  1. US DOE — Eliminate Voltage Unbalance, Motor Systems Tip Sheet #7 (2012)

    Pages 1–2: maximum deviation / average formula and the 1% voltage guide. Applies to line supply screening, not winding resistance or PWM output.

  2. ABB — Low Voltage Motors manual, 3GZF500730-85 Rev H (May 2022)

    Sections 3–6: installation, commissioning and converter operation for the listed ABB motor families. Other motor families need their own manual.

  3. ABB — MotiFlex e180 user manual, 3AXD50000019946 Rev H (20 May 2026)

    Rev H pages 17, 47 and 229–231: permanent-magnet motion hazards and STO isolation limits; chapter 9: startup. The library link resolves the available revision; check its cover before use. This is not a procedure for every drive.

  4. Megger — The missing link in motor condition monitoring (10 May 2020)

    Static test sections: temperature context and limits of insulation-resistance testing. A good IR reading alone cannot establish winding health.

  5. IEC — IEC 60034-14:2018, edition 4.0 scope

    Public scope covers factory acceptance vibration tests on specified uncoupled machines. It does not supply a universal field acceptance value; full limit tables are not reproduced here.

  6. IEEE SA — IEEE 43-2013 status and scope

    Listed as Inactive-Reserved, inactivated 21 March 2024. Confirm the edition required by your project; this page does not claim compliance or reproduce paywalled acceptance tables.

Commissioning electrical motors: practical questions

Planning and scope

What is the difference between commissioning electrical motors and maintenance?

Commissioning establishes the installation record and baseline before service. Maintenance compares later measurements under comparable conditions. Keep the motor identity, temperature, speed, load, instrument details and approved limits with both records. Source and scope

Does a factory-new motor still need site commissioning?

Yes. Factory records do not verify site wiring, alignment, storage condition or the installed drive configuration. Use the applicable motor and machine commissioning procedures before accepting the installation. Source and scope

Is an uncoupled test always mandatory?

No universal requirement is asserted here. Uncoupled testing can help separate motor and load effects when the design and OEM procedure permit it. Integrated, sealed or process-dependent equipment may need an approved assembled test instead. Source and scope

Can I use this plan for a high-voltage or hazardous-area motor?

Use a specialist, motor-specific procedure. At 1,000 V and above this tool returns an OEM review boundary and disables voltage screening. Hazardous-area and other special-service motors require additional documentation even below that voltage. Source and scope

Measurements and interpretation

Why does the tool not calculate an insulation limit from rated voltage?

Rated voltage and power do not identify winding construction, insulation condition, test configuration or reference temperature. Obtain the approved test method and acceptance limit first; this tool leaves those values pending. Source and scope

Does the 1% guide apply to winding resistance?

The DOE guide used by this calculator concerns line-to-line voltage unbalance. Resistance needs its own temperature context and OEM tolerance. Do not substitute a voltage criterion for a resistance acceptance test. Source and scope

Can I enter VFD output readings into the voltage checker?

No. This checker is scoped to recorded sinusoidal mains readings for three-phase induction motors below 1,000 V. Drive output measurements require a suitable instrument and the drive manufacturer’s method; selecting drive-fed disables the checker. Source and scope

Does a result within 1% mean the motor is safe to start?

No. The calculation checks only relative voltage magnitudes. It does not check absolute voltage, phase sequence, insulation, protection, mechanical condition or instrumentation uncertainty. Complete the approved commissioning record before sign-off. Source and scope

Safety and handover

Does Safe Torque Off isolate the motor electrically?

No. STO prevents drive-generated torque but does not provide electrical isolation or guarantee zero terminal voltage. Electrical work requires the approved isolation, lockout and verification procedure; external motion and stored energy also need control. Source and scope

What changes for a PMSM or servo motor?

Use the compatible drive setup and motor-specific feedback, commutation and brake requirements. A permanent-magnet rotor can generate voltage if moved externally. The planner selects a drive-specific checklist rather than generic current or vibration limits. Source and scope

What if the approved limit or the manual is missing?

Mark the item pending and obtain the motor/drive manual revision and acceptance values from the responsible supplier or engineer. The downloadable plan includes missing evidence fields; do not turn a missing value into a pass. Source and scope

Which vibration limit should go into the handover record?

Use the applicable OEM and project criterion with its speed, mounting, sensor position, bandwidth and load condition. IEC 60034-14 covers specified uncoupled factory tests; its public scope does not justify a single limit for every installed machine. Source and scope

Resolve the missing evidence before release

For an AMRDriveUnit integration review, prepare the motor/drive model, supply, nameplate, duty cycle, feedback and brake details, applicable manuals and the pending items from your plan.
