Published April 25, 2026 • Last updated May 20, 2026
2006 42 EG Machinery Directive (2006/42/EC) Compliance Tool + Decision Report
This page answers both intents in one place: immediate triage for 2006/42/ec machinery directive applicability, explicit alias intent coverage for 2006 42 eg machinery directive and annex iv machinery directive, and deeper evidence, boundaries, and risk tradeoffs for launch planning with traceable route conditions.
Planning anchor: projects placed on market near 20 January 2027 need transition-aware evidence and schedule control.
Fill the tool inputs and run an evaluation to get an actionable route, risk notes, and an explicit next CTA.
Report Summary: Core Conclusions, Key Numbers, Audience Fit
This section turns the tool output into a decision-ready summary for engineering, quality, and program leads.
Need expert confirmation before release-gate lock? Run the tool, then escalate with your scoped evidence pack.
The Directive path and Regulation path diverge at a corrected legal boundary (20 Jan 2027), so schedule slips can change your required conformity framework.
The 2023 corrigendum corrected multiple dates, not just one. Teams that still carry pre-corrigendum date strings can fail gate planning and handover timing.
For Annex IV machinery, full coverage enables internal-check options; partial or missing coverage pushes you toward routes with notified-body involvement.
Only machinery in Annex IV items 1-23 uses Article 12(3)/(4) branching. Similar hazard profile alone does not automatically move machinery into Annex IV routes.
The Guide clarifies three gates: relevant harmonised standard scope, full EHSR coverage, and full implementation of the referenced standards. If any gate fails, use Article 12(4) routes.
Do not treat partly completed machinery as a full-machine declaration flow; declaration of incorporation and assembly instructions are mandatory on that branch.
Under Regulation (EU) 2023/1230, the person making a substantial modification can become the manufacturer for the modified machinery.
Harmonised references continue changing through 2025 and 2026 amendments. Treat standards mapping as a maintained baseline, not a one-time checklist.
29 Dec 2009
Directive 2006/42/EC applies from this date (Article 26).
20 Jul 2025
Corrigendum updates Article 6(9) timeline marker from 14 Jul to 20 Jul 2025.
20 Jan 2027
Corrigendum corrects Article 54 date marker to 20 Jan 2027 for planning handover.
23
Annex IV contains categories 1-23 tied to Article 12(3) and 12(4) procedures.
Apr 2024
Most recent guide edition linked from Commission machinery overview page.
12 Mar 2026
Commission harmonised-standards page lists 2026/546 amendment dated 12 Mar 2026 (OJ publication 13 Mar 2026).
- Teams planning EU launch windows and needing path confidence.
- Projects with measurable standards coverage and evidence tracking.
- Cross-functional gates (engineering + quality + compliance).
- Country-specific legal interpretation without specialist review.
- Product families outside machinery framework scope.
- Final legal sign-off decisions where only formal legal advice is acceptable.
| Decision input | Primary path | What to verify next |
|---|---|---|
| Market date before 20 Jan 2027 | Directive 2006/42/EC baseline | Confirm machine profile + standards mapping + technical file completeness. |
| Market date from 20 Jan 2027 | Regulation (EU) 2023/1230 baseline | Confirm updated obligations and transition assumptions in final release gate. |
| Within ±6 months of transition date | Boundary case (dual-path planning) | Freeze timeline assumptions and document fallback conformity route. |
Deep Layer: Method, Evidence, Comparison, Risks
The tool gives a fast recommendation; this layer explains why that recommendation is trustworthy and where it can fail.
| Detected gap | Decision risk | Stage1b fix | Refs |
|---|---|---|---|
| Lead-time/cost claims were expressed as fixed ranges without primary evidence. | Could mislead planning decisions as if EU publishes benchmark cycle-times. | Replaced with evidence-graded tradeoff matrix and explicit "no reliable public EU-wide dataset" notes. | S1S2S3 |
| Harmonised-standards timeline stopped at 2024-level evidence in key sections. | Outdated standards references can invalidate presumption-of-conformity assumptions during release. | Added 2025/2026 amendment chain and decision-impact timeline anchored to Commission and OJ sources. | S2S7S8 |
| Concept boundaries were broad (Annex IV, partly completed, substantial modification, Annex I Part A/B split). | Users may choose the wrong conformity route before checking legal conditions. | Added clause-linked boundary table with applicable/non-applicable conditions and counterexamples. | S3S4 |
| Transition narrative did not expose multiple corrigendum date corrections (not only the final go-live date). | Teams might run mixed date baselines across legal, quality, and program plans. | Added date-chain markers (20 Jul 2025 and 20 Jan 2027) and explicit corrigendum traceability. | S1S5 |
| Procurement-facing certificate caveat was under-specified. | Teams may treat unregulated voluntary certificates as legal conformity evidence. | Added explicit risk/FAQ guidance that voluntary certificates are not recognized proof under EU machinery compliance workflow. | S1 |
| Alias intent "annex iv machinery directive" was not explicitly surfaced in hero/FAQ anchors. | Users could miss whether Annex IV intent is covered in the canonical URL and assume missing scope. | Added explicit alias anchor, intro phrasing, and FAQ coverage for the Annex IV alias query. | S1S9 |
| Annex IV boundary lacked explicit “exhaustive list” wording and entry-count context. | Teams may over-escalate non-listed machinery or under-escalate listed machinery due to fuzzy “high-risk” shorthand. | Added Annex IV exhaustive-list boundary (items 1-23), Article 12 route conditions, and counterexample guidance. | S9S10 |
| Date | Official update | Decision impact | Refs |
|---|---|---|---|
| 13 Aug 2025 | Implementing Decision (EU) 2025/1740 added to amendment chain for 2023/1586. | Standards landscape was still moving in 2025; static standards snapshots became stale quickly. | S2 |
| 12 Jan 2026 | Implementing Decision (EU) 2026/80 amendment dated 12 Jan 2026 (OJ publication 13 Jan 2026) maintained EN 50434:2014 with a restriction. | Presumption-of-conformity can be narrowed by restriction, so 'standard used' is not enough without checking OJ conditions. | S7 |
| 12 Mar 2026 | Implementing Decision (EU) 2026/546 amendment dated 12 Mar 2026 (OJ publication 13 Mar 2026) amended/corrected 2023/1586 and listed further restrictions and applicability clauses. | Route confidence now depends on versioned standard references and amendment dates, not only document titles. | S2S8 |
| 20 Jan 2027 | Corrigendum to Regulation 2023/1230 corrected Article 54 date marker from 14 Jan 2027 to 20 Jan 2027. | Transition gate should key off corrected date strings to avoid legal/planning mismatch at release handover. | S1S5 |
| Concept | Legal boundary | Decision impact | Refs |
|---|---|---|---|
| Scope vs exclusion | Directive 2006/42/EC Article 1 includes machinery, interchangeable equipment, safety components, lifting accessories, chains/ropes/webbing, removable mechanical transmission devices, and partly completed machinery; Article 1(2) lists exclusions. | If your product sits in an exclusion bucket, this tool is only a triage start and not a complete compliance basis. | S3 |
| Annex IV conformity route | Article 12(3) allows Annex VIII internal checks only when Annex IV machinery is fully designed to harmonised standards that cover all applicable EHSRs; if not, Article 12(4) routes apply. | Partial standards coverage should trigger early route escalation instead of late-stage surprises. | S9S10 |
| Annex IV list boundary | Annex IV is an exhaustive list (items 1-23) linked to Article 12(3)/(4). Similar machinery outside the listed categories remains in Article 12(2) internal-check route. | Do not classify by “looks high-risk”; classify by explicit Annex IV item match plus Article 12 conditions. | S9S10 |
| Partly completed machinery | Article 13 requires relevant technical documentation, assembly instructions, and declaration of incorporation before placing partly completed machinery on the market. | Do not assume a full EC declaration of conformity endpoint for this branch. | S3 |
| Substantial modification | Regulation (EU) 2023/1230 defines substantial modification and states that the modifying person is considered manufacturer for the modified machinery. | Retrofit projects need a re-baselined conformity plan, not only a patch to prior documents. | S4 |
| Annex I Part A vs Part B under Regulation | Regulation Article 25 splits high-risk categories into Annex I Part A and Part B, each with specific conformity assessment procedures. | Do not carry Directive-style route assumptions directly into post-2027 programs without reclassification. | S4 |
| Digital instructions and declarations | Regulation obligations allow digital access patterns (internet address or machine-readable code) for declarations and related documentation instructions. | A digital-delivery model still needs traceable access control, versioning, and retrieval proof at audit time. | S4 |
- Locate project on timeline (date boundary first).
- Classify machine profile and conformity pressure.
- Score evidence maturity (standards + technical file + declaration).
- Convert score + warnings into action-ready recommendation.
| Readiness score | State | Default action |
|---|---|---|
| 75-100 | On-track | Proceed with final evidence closeout and release gate checklist. |
| 50-74 | Needs-review | Run targeted gap review (documentation + standards mapping) before launch lock. |
| 0-49 | High-risk | Escalate scope, timeline, and conformity route. Do not keep original launch plan unchanged. |
| Source | Date marker | Used for |
|---|---|---|
| [S1] European Commission: Machinery (mechanical engineering) overview page | Accessed May 20, 2026 | Transition overview (including mandatory application from 20 Jan 2027), Guide 2.3 marker, notified-body pointers, and official warning on unregulated voluntary certificates. |
| [S2] European Commission: Harmonised standards for Machinery Directive 2006/42/EC | Accessed May 20, 2026 | Consolidated publication chain for harmonised standards under Directive 2006/42/EC, including 2025 and 2026 amendments to Implementing Decision (EU) 2023/1586. |
| [S3] EUR-Lex CELEX 32006L0042 (HTML): Directive 2006/42/EC (Machinery) | Accessed May 20, 2026 | Primary legal text for scope, exclusions, manufacturer obligations, Article 12 conformity routes, and partly completed machinery obligations. |
| [S4] EUR-Lex CELEX 32023R1230 (HTML): Regulation (EU) 2023/1230 (Machinery) | Accessed May 20, 2026 | Post-transition legal baseline including substantial-modification definition, Article 18 manufacturer-duty shift, and Article 25 Annex I Part A/B conformity split. |
| [S5] EUR-Lex CELEX 32023R1230R(01) (OJ L 169): Corrigendum to Regulation (EU) 2023/1230 | Accessed May 20, 2026 | Corrected transition dates, including Article 54 correction from 14 Jan 2027 to 20 Jan 2027 and other milestone fixes. |
| [S6] European Commission: Formal objections to harmonised standards | Accessed May 20, 2026 | Shows the Commission mechanism for maintaining, restricting, or removing harmonised-standard references after objections. |
| [S7] EUR-Lex ELI dec_impl/2026/80: Implementing Decision (EU) 2026/80 | Decision dated January 12, 2026 | OJ publication January 13, 2026 | accessed May 20, 2026 | Amends Implementing Decision (EU) 2023/1586 and maintains EN 50434:2014 with restriction after formal objection. |
| [S8] EUR-Lex ELI dec_impl/2026/546: Implementing Decision (EU) 2026/546 | Decision dated March 12, 2026 | OJ publication March 13, 2026 | accessed May 20, 2026 | Further amends/corrects 2023/1586 with added and withdrawn references plus restrictions and dated applicability clauses. |
| [S9] Legislation.gov.uk mirror: Directive 2006/42/EC revised PDF (26 July 2019) | Revision date July 26, 2019 | accessed May 20, 2026 | Used to verify Article 12(2)-(4), Article 13, Article 14(1), Article 26, and Annex IV items 1-23. |
| [S10] European Commission DocsRoom: Guide to application of Machinery Directive 2006/42/EC (Edition 2.3) | Published April 2024 | accessed May 20, 2026 | Used for §129 and §388 clarifications: Annex IV route preconditions, exhaustive list boundary, and non-listed counterexamples. |
| Decision dimension | Option A | Option B | Counterexample / limitation | Refs |
|---|---|---|---|---|
| Annex IV machine with full harmonised coverage | Internal checks route remains available. | EC-type examination / full quality assurance can still be selected for added confidence. | Coverage must address all relevant EHSRs; partial coverage changes the route options. | S3 |
| Annex IV machine with partial/no harmonised coverage | Internal checks only route is not the safe default under Article 12 branch logic. | Plan early for conformity routes that include notified-body interaction. | Late route switching is a recurring schedule blocker in mixed-coverage projects. | S3 |
| Article 12(3) preconditions check | Pass all three gates (standard scope, full EHSR coverage, full standard implementation) before selecting Annex VIII-only path. | Use Annex VIII-only path without proving all three gates from the Guide §129. | If any gate fails, Article 12(4) routes (Annex IX + Annex VIII point 3, or Annex X) are the defensible minimum. | S9S10 |
| Annex IV listed category vs similar hazard profile | Treat Annex IV as exhaustive (items 1-23) and classify against explicit item text. | Escalate non-listed machinery into Annex IV routes only by hazard similarity shorthand. | Guide §388 states non-listed categories remain Article 12(2), even if hazards appear similar. | S9S10 |
| Partly completed machinery path | Declaration of incorporation + assembly instructions are the legal endpoint. | Treating this path as full-machine declaration is a compliance mismatch. | Final machine conformity duties still sit with whoever completes and puts the machine into service. | S3 |
| Substantial modification in retrofit program | Minor non-substantial change can stay in existing baseline with controlled updates. | Substantial modification can shift obligations to the modifying person as manufacturer. | Classification error creates high legal and schedule exposure near release. | S4 |
| Regulation high-risk routing (Annex I Part A vs Part B) | Classify into correct Annex I part and plan the corresponding Article 25 conformity path upfront. | Carry over a legacy route assumption and defer reclassification until late project phases. | Late reclassification can force redesign of evidence package and notified-body engagement timing. | S4 |
| Conformity documentation delivery model | Digital-first delivery (internet address / machine-readable code) with version governance. | Hybrid delivery (digital + controlled print packs) for environments with weak retrieval governance. | Digital-only without retrieval controls can fail practical audit execution even when legally permitted. | S4 |
| Third-party certificate procurement signal | Accept only notified-body outputs within designated scope as formal conformity evidence. | Treat voluntary/unregulated certificates as if they are equivalent to legal conformity outputs. | Voluntary certificates are explicitly flagged by the Commission as not a recognized proof of compliance. | S1 |
Highest concentration: framework mismatch + technical file gaps + late substantial modification.
| Risk | Trigger | Impact | Mitigation | Refs |
|---|---|---|---|---|
| Wrong transition date carried into release planning | Teams still reference pre-corrigendum strings (for example 14 Jan 2027) in planning artifacts | High | Use a dated transition checkpoint in each gate review and rerun this tool whenever launch date changes. | S1S5 |
| Annex IV route misclassification | Project assumes partial standards coverage can stay in an internal-check-only path | High | Map EHSR coverage explicitly and escalate to Annex IX/X style routes when full coverage is absent. | S9S10 |
| Annex IV keyword-driven overclassification | Teams classify machinery as Annex IV from search phrase familiarity without matching Annex IV items 1-23 | High | Run a documented item-level match against Annex IV list before selecting Article 12(3)/(4) path assumptions. | S9S10 |
| Harmonised-reference drift | Standards mapping is frozen once and never revalidated against 2025/2026 amendments and restrictions | High | Track reference versions at each release gate and revalidate affected clauses after each amendment publication. | S2S6S7S8 |
| Retrofit treated as minor despite substantial modification | Controls/safety architecture changes without re-baselining conformity responsibilities | High | Run a substantial-modification determination and reset manufacturer-duty assumptions when threshold is met. | S4 |
| Voluntary certificate mistaken as legal conformity proof | Supplier documents are accepted without checking notified-body designation/scope | High | Verify notified-body designation in NANDO and document why each certificate is legally admissible for the target route. | S1 |
| Question | Status | Minimum executable path |
|---|---|---|
| EU-wide notified-body queue time benchmark | Awaiting confirmation / no reliable public EU-wide median lead-time dataset located in Commission/EUR-Lex sources (as of May 20, 2026). | Collect written timeline quotes from shortlisted notified bodies and plan using the worst-case quote. |
| EU-wide conformity assessment cost benchmark | Awaiting confirmation / no reliable public cross-sector cost benchmark found in the cited official sources. | Estimate cost with supplier-specific proposals plus internal engineering-hour baseline; avoid generic web averages. |
| Public failure-rate statistics by machinery profile | Awaiting confirmation / no reliable public dataset found that maps failure rates to Annex IV or partly-completed profiles. | Use internal nonconformity logs and external audit findings to build your own risk priors before committing dates. |
| EU-level public benchmark based on Article 6(9) accident reporting | Awaiting confirmation / official requirement and template are published, but no reliable consolidated public EU benchmark dataset was identified in cited sources (as of May 20, 2026). | Use internal incident data and national authority publications; do not assume a single EU-wide public benchmark exists today. |
Standard conveyor module for EU launch in 2026
Assumptions: Non-Annex-IV listed profile, strong standards mapping, technical file 90% ready.
Outcome: Usually on-track under Directive 2006/42/EC with final documentation sprint.
High-risk automated cell near 2027 boundary
Assumptions: Annex-IV listed profile, mixed standards coverage, launch date within ±3 months of transition.
Outcome: Needs-review: dual-path planning and external review reduce timing risk.
Legacy machine with substantial modification
Assumptions: Control architecture changed, partial technical file history, no notified body plan.
Outcome: High-risk until conformity route and evidence package are rebuilt as a new baseline.
Decision FAQ
Grouped by decision intent to reduce ambiguity during compliance planning.
Next Step CTA
If your result is not on-track, freeze launch assumptions and run a documented gap review before engineering spends additional integration effort.
Internal anchor for alias intent: 2006 42 eg machinery directive , annex iv machinery directive and ce machinery directive, ce machinery directive 2006 42 ec, ce marking machinery directive 2006/42/ec requirements, current machinery directive and machinery directive 2023 transition.
Machinery safety & compliance components

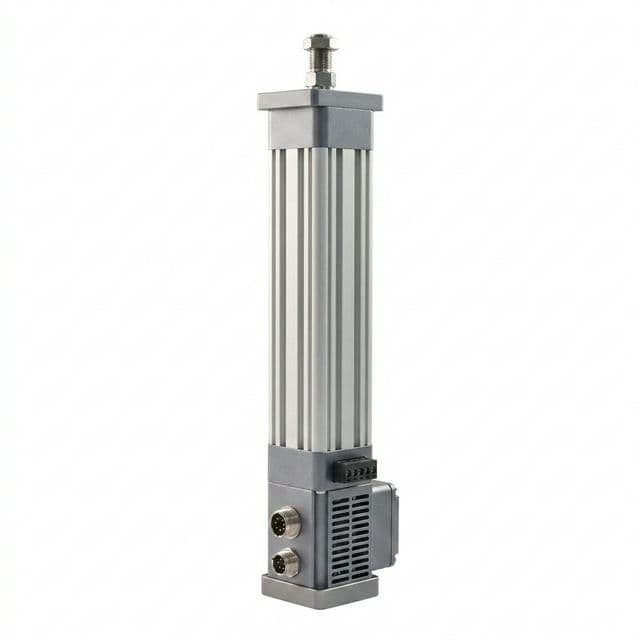

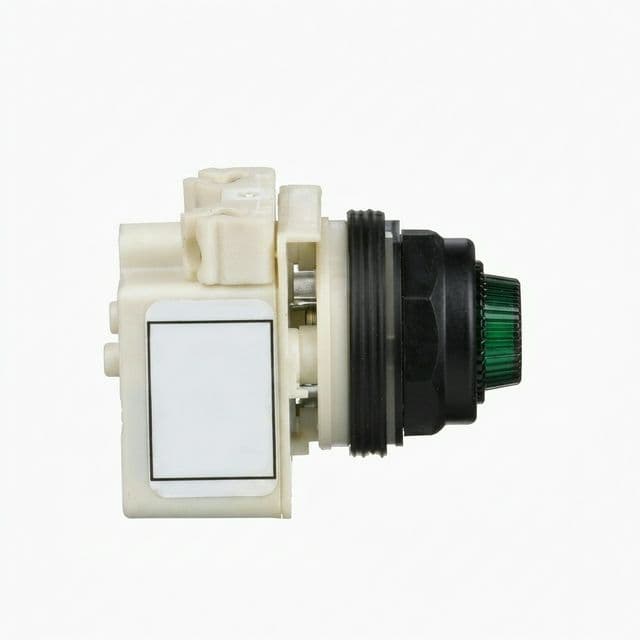

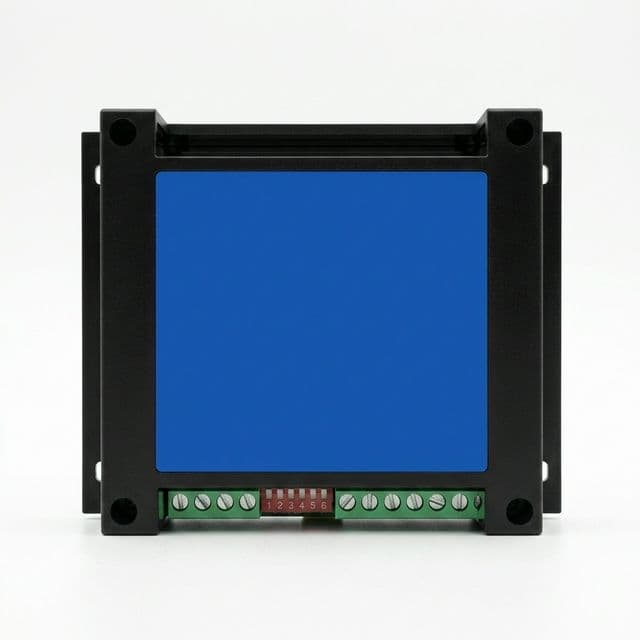

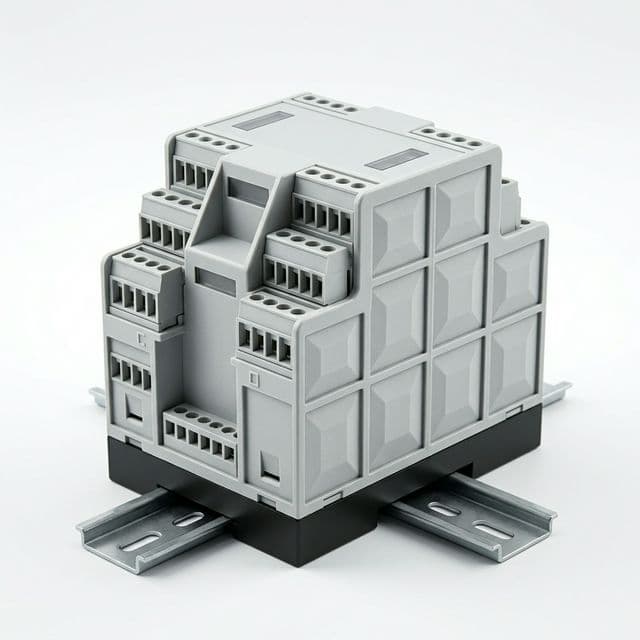

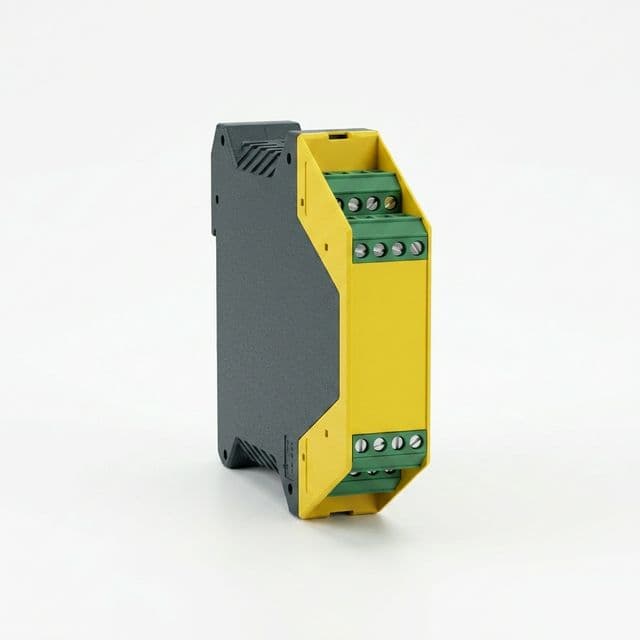

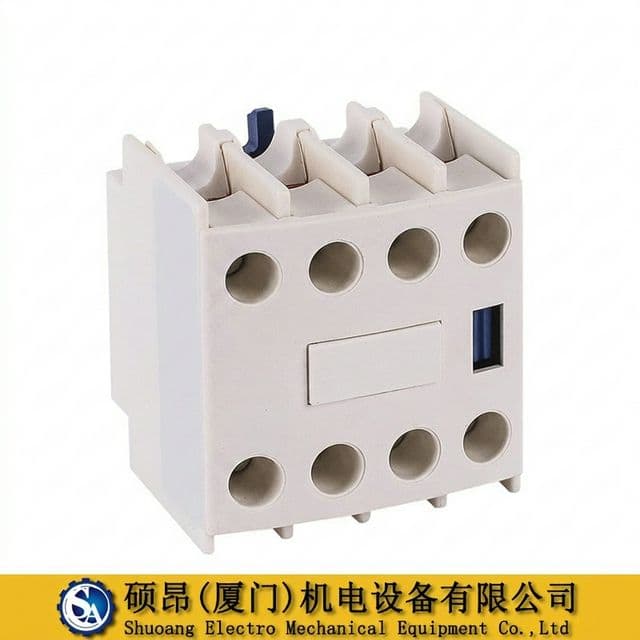

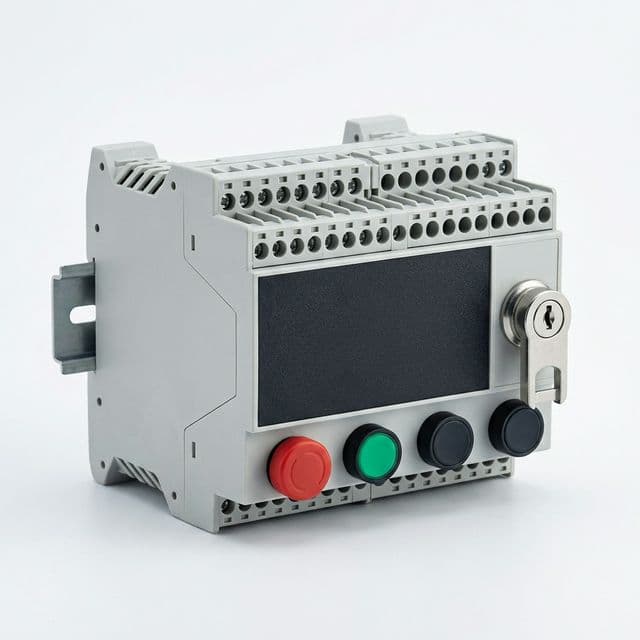

Safety relays, STO drives, and control modules used in Directive 2006/42/EC conformity workflows.
